Version BH (short version)

Version BH & BH + 5

  1. Scope

Pipe bracket with BH shape suitable for upright or hanging installation

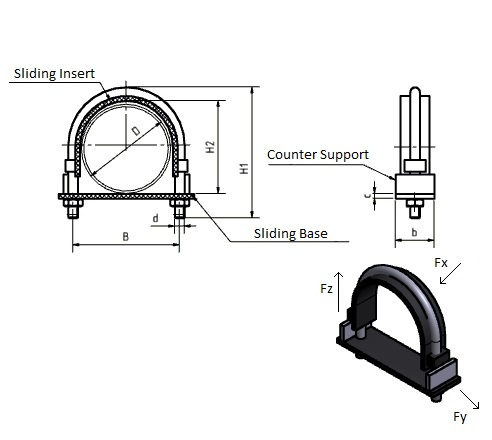

  1. Dimensions

BH shape = Short version with counter support



3. Table 1 - Dimensions of BH

Nimonal

Dimension

Pipe ø Total Height Height Thread Length Width Distance Dimension Stress (kN) Counter Support
DN D H1 H2 d L b B c Fx Fy Fz
15 21,3 65 23,0 10 65 40 39 5 2,3 21,5 38,2 5 x 20 x 40
20 26,9 70 28,5 70 44
25 33,7 78 36,0 78 52
32 42,4 86 44,0 86 60
40 48,3 92 50,0 92 66
50 60,3 104 62,0 104 78
65 76,1 122 79,0 122 96
80 88,9 134 91,5 134 108
100 114,3 160 117,0 160 134
125 139,7 194 144,0 12 198 166 1,4 27,7 63,3 8 x 20 x 50
150 168,3 222 172,0 226 194
200 219,1 273 223,5 278 246
250 273,0 328 277,5 332 300
300 323,9 387 328,0 16 390 358 12 3,5 48,2 117,8 10x20x60
400 406,4 481 416,0 496 452 k.a. k.a. k.a.

4. Table 1.1 - Dimensions of Variante BH + 5mm

Nominal

Dimension

Pipe ø Total Height Height Thread Lenght Width Distance

Dimension

Stress (kN) Counter Support
DN D H1 H2 d L b B c Fx Fy Fz
15 21,3 70 28,0 10 65 40 39 10 2,3 21,5 38,2 5 x 20 x 40
20 26,9 75 33,5 70 44
25 33,7 83 41,0 78 52
32 42,4 91 49,0 86 60
40 48,3 97 55,0 92 66
50 60,3 109 67,0 104 78
65 76,1 127 84,0 122 96
80 88,9 139 96,5 134 108
100 114,3 165 122,0 160 134
125 139,7 199 149,0 12 198 166 1,4 27,7 63,3 8 x 20 x 50
150 168,3 227 177,0 226 194
200 219,1 278 228,5 278 246
250 273,0 333 282,5 332 300
300 323,9 392 333,0 16 390 358 12 3,5 48,2 117,8 10x20x60
400 406,4 486 421,0 496 452 k.a. k.a. k.a.

All other specifications, see the technical data sheet.

PE BH Technical Data Sheet.pdf
PDF-Dokument [112.9 KB]
