Version DH

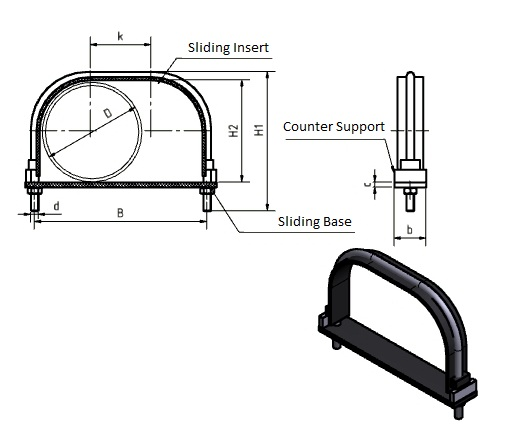

Pipe bracket with DH shape suitable for upright or hanging installation
DH shape = Sideflexing version with counter support
GLSS (slide bearing upright slideflexing)
GLSH (slide bearing hanging slideflexing)
3. Table 1 – Dimensions of DH
Nennmaß DN |
Rohr ø D |
Höhe H1 |
Höhe H2 |
Gewinde d |
Länge L |
Breite b |
Abstand B |
Maß c |
Maß k |
Gegenhalter |
20 | 26,9 | 75 | 34 | M10 x 18 | 150 | 40 | 124 | 5 | 80 | 5 x 20 x 40 |
25 | 33,7 | 83 | 41,0 | M10 x 18 | 153 | 124 | 74,8 | |||
40 | 48,3 | 97 | 55,0 | M10 x 18 | 165 | 134 | 70,8 | |||
50 | 60,3 | 109 | 67,0 | M10 x 21 | 183 | 154 | 78,6 | |||
65 | 76,1 | 127 | 84,0 | M10 x 21 | 199 | 169 | 75,6 | |||
80 | 88,9 | 139 | 96,5 | M10 x 21 | 213 | 184 | 78,6 | |||
100 | 114,3 | 165 | 122,0 | M10 x 25 | 246 | 214 | 82,5 | |||
125 | 139,7 | 199 | 149,0 | M12 x 27 | 277 | 237 | 75,5 | 8 x 20 x 50 | ||
150 | 168,3 | 227 | 177,0 | M12 x 27 | 304 | 267 | 77,5 | |||
200 | 219,1 | 278 | 229 | M12 x 27 | 349 | 317 | 71 | |||
250 | 273 | 333 | 283 | M12 x 27 |
All other specifications, see the technical data sheet.
